Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute

Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute

  • Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute
  • Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute
  • Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute
  • Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute
  • Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute
  • Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute
Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute
جزئیات محصول:
محل منبع: گوانگدونگ ، چین
نام تجاری: MAUFUNG
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: $11,500-12,000
مخاطب
توضیحات محصول جزئیات
درجه خودکار: نیمه اتوماتیک قدرت: 1.5 کیلووات
ولتاژ: 380 ولت بعد: 1820×930×2100 میلی متر
وزن: 540 کیلوگرم سرعت: 1-17 عدد در دقیقه
ضخامت کاغذ: 4-60 میلی متر حداکثر اندازه: 360×270 میلی متر
اندازه حداقل: 90×60 میلی متر منبع تغذیه: 380V/3PH/50Hz
سرعت کار: 0-17 عدد در دقیقه ضخامت بلوک: 4-60 میلی متر
ابعاد ماشین: 1820×930×2100 میلی متر وزن ماشین: 540 کیلوگرم
دامنه سرعت: 0-1000 کتاب در ساعت
برجسته کردن:

1.5KW Hard Cover Book Casing In Machine

,

380V Notebook Binding Machine

,

1-17pcs/minute Book Casing In Machine

Post-Press Equipment Hard Cover Book Casing Machine
Hard Cover Book Casing Machine
Technical Specifications
Model No MF-SKJ380AS
Power Supply 380V/220V, 50HZ
Mainframe power 1.5kw
Work Speed 0-17PCS/minute (Adjustable Speed)
Block Thickness 4-60mm
Max Size 360x270mm
Min Size 90x60mm
Machine Dimensions(L×W×H) 1820×930×2100mm
Machine Weight 540kg
Main Features
  • Adjustable Speed: Speed range 0-1000 books/hour (17 books/minute). The parameter is measured as per the common pause time.
  • Adjustable Pause Time: The pause time when the machine reaches the highest point is controlled by an external time relay, allowing user adjustment as needed.
  • Inch Operation: Includes inch-in switch for precise alignment during machine debugging.
  • Automatic Power Off: Machine motor stops after 10 minutes of inactivity for operator safety and extended machine lifespan.
  • Premium Variable-Frequency Drive: Features high-quality imported variable-frequency drive for reliable performance.
  • Simplified Electrical Installation: Variable-frequency drive controller ensures correct machine rotation regardless of three-phase electric phase sequence.
Book Casing Machine Operation
Applications
Designed for medium and small factories, this semi-automatic casing machine addresses the time-consuming nature of hardcover book production. It improves efficiency by:
  • Reducing labor requirements
  • Eliminating unbalanced gluing issues
  • Increasing gluing speed (both sides simultaneously)
  • Providing quick, precise alignment of hard cases with book blocks
Available in three versions: standard for hard cover, updated for soft cover, and custom for round back books.

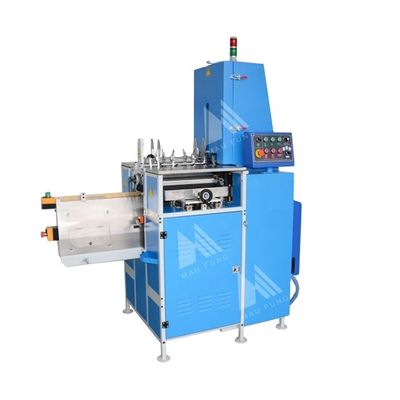

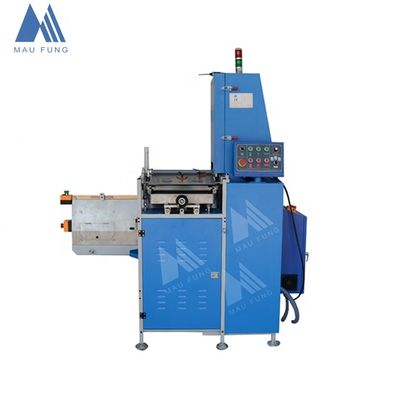

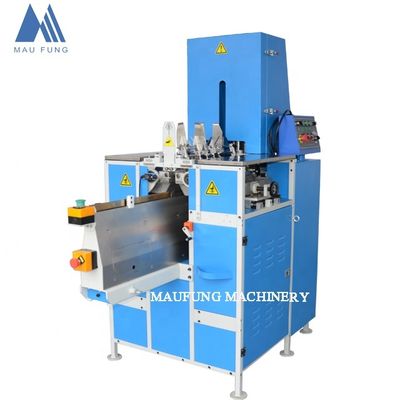

Machine Close-up View Machine Operation View Machine Side View Machine Control Panel
Certifications
Machine Certifications
Manufacturer Information
Dongguan Maufung Machinery Facility
Dongguan Maufung Machinery Co., Ltd., located in Wanjiang district, Dongguan city, specializes in manufacturing case-makers for hardcover books, post-printing processes, packaging, automatic gift box, and pasting machines. Our product line includes:
  • Photo Book Lay Flat Machine
  • Book Block Head Band Machine
  • Semi Auto Case Maker
  • Hard Cover Book Pressing & Creasing Machine
  • Fully Automatic Punching Machine
Our MAUFUNG brand equipment is renowned in domestic and international markets, exported to over 100 countries including the United States, the Netherlands, Australia, and throughout Southeast Asia, Russia, the Middle East, and Africa. We maintain strict quality control and offer comprehensive after-sales services including installation, adjustment, and maintenance.
Company Exhibition
Maufung Machinery Exhibition Booth
